Attribute based routing in ASP.NET Web API - StrathWeb

Strath

Attribute based routing in ASP.NET Web API

Easy way to have granular control over your routes

Routing is the key aspect of every MVC application – after all, it’s how people get to your application, and how search engines see it. As flexible as routing in ASP.NET MVC has been, one would often end up in frustrating situations where more flexibility was needed (or you simply started getting lost in a maze of routes). One of the finest extensions to ASP.NET MVC I have ever worked with is the excellent library AttributeRouting by Tim McCall.

Last month, through the great work of Kamran Ayub, the library has been extended to support ASP.NET Web API, and is now available on NuGet. Let’s have a look at how it can immediately make your life easier and drastically improve the way you handle your routes.

Getting the appropriate stuff from NuGet

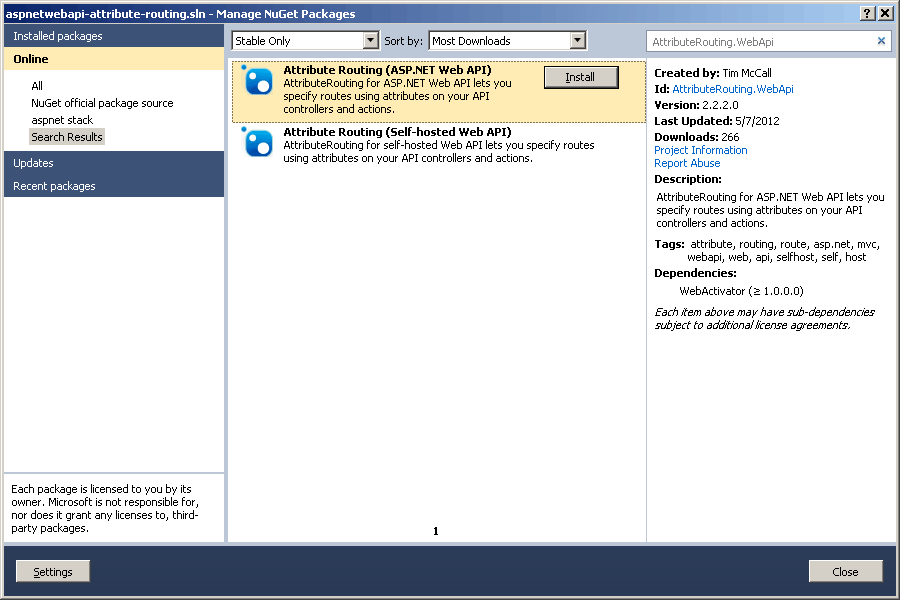

You need to start off with a Web API project, and grab the AttributeRouting for Web API from NuGet. The package name is AttributeRouting.WebAPI and it is dependent on the WebActivator.

Note: If you want to use AttributeRouting for self-hosted Web API, grab the AttributeRouting.WebAPI.Hosted package instead.

What just happened

You’ll notice that upon installation from NuGet, a new folder appeared in your app, called App_Start, which contains a static class, AttributeRoutingHttp. This is how, through WebActivator AttributeRouting plugs itself automatically into the application start pipeline. If you don’t like this setup (like me) you can move the code to Global.asax.

In here, your controllers are scanned for the routing attributes, and the plumbing happens – the routes are generated based on the attributes and registered in your application.

Using the attributes

The concept is wonderfully simple, just decorate your controllers and their actions with routing attributes, defining all kinds of route-specific information:
– route names
– access method/verb
– route constraints
– default and optional parameters
– route areas
– area mapping
– route prefixes
– route translations
– routing conventions

and many more.

Since you do all that at such a low level (action or controller), you get the ultimate, granular control of routing in your application.

To be able to get started, first import the appropriate namespaces to your controllers – for ASP.NET Web API these are:

Let’s go through a few examples. For the record, I’ll be using the same simple repository that I used in this blog post.

Example – Basic HTTP methods

Let’s add a controller and a simple get all action.

Now this can be accessed easily:
/links/ (via GET)

We can add more routes to same action, we can also mix the verbs

This action can now be invoked:
/links/ (via GET)
/urls/ (via GET)
/postedlinks/ (via POST)

We can easily pass paramters:

The single item can now be requested like this:
/url/1 (via GET)

Example – route constraints

We can also very easily add route constraints. In fact, through a terrific work of Xavier Poinas, there is a special syntax for that.

Let’s take the example from previous paragraph, and limit a range in which the ID can be used.

This will now respond to the following example:
/url/1 (via GET)
but not to
/url/4 (via GET)

Routing constraints can , among there many terrific options, also take in regular expressions

This is a simple example, with the pattern [large letter] [small letter] [number]. So this action will respond to requests which follow such format only, i.e.:
/text/Ab1 (via GET)

As mentioned, there are many more constraints possible. All are listed here.

Example – default and optional parameters

You can define the default and optional paramteres for the route as well. Let’s use the previous example.

Now, if you request
/url/ (via GET)
you’d actually get the same content as in
/url/1 (via GET)
as the route parameter id would default to 1.

You can also set up optional parameters:

This can be requested:
/optionaltext/ (via GET)
/optionaltext/hi (via GET)
/optionaltext/hi/hello (via GET)

Example – route prefixing

Another great functionality of AttributeRouting is the ability to prefix all the routes withing controller with a common prefix.

In this case the entire controller is prefixed by items. This means we access the above action like this:
/items/ (via GET)
/items/links/ (via GET)

Example – easy translations

AttributeRouting provides a really easy way for supporting transations. Just decorate your action methods with appropriate key, and in the Application_Start read the key values for a given language. Then initialize the routes by passing the translations in the config.

That will automatically generate translated routes for you. (Note, the example has translations hardcoded, normally you’d read them from resx or XML or DB).

Please note that you need to specify to which Controller the translations need to be applied.

And next, the attributes declaration:

You can now access both the default, german and french routes:
/items/ (via GET)
/german-items/ (via GET)
/french-items/ (via GET)
/items/links/ (via GET)
/german-items/german-links/ (via GET)
/french-items/french-links/ (via GET)

Summary

These were just a handful of examples, but hopefully it was enough to draw you interest to the wonderful AttributeRouting library.

I have to admit, I’ve been using it for MVC for quite a while and I think it’s one of the best thing that could have happened for MVC developers. Since now it is available for ASP.NET Web API I guarantee you that after using it for a while you’ll never want to go back to the dark ages of declaring routes in a “traditional” way :-)

Cheers!
